Design Features
◆Flanged ends：GB/T 9113,JB/T 79,HG 20596
◆Test & inspection：JB/T9092,GB/T 13927
◆Applicable medium: Water,oil Ect
Main parts and materials

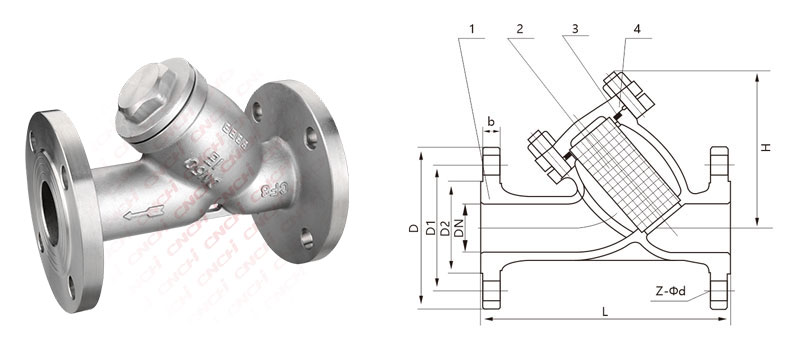

ITEM PART MAIN MATERIAL 1 Body WCB CF8 CF8M 2 Filter Screen 304 316 3 Sealing ring PTFE RPTFE 4 Bonnet WCB CF8 CF8M Main dimensions(1.6MPa) (mm)
SIZE L D D1 D2 Z-Φd 1/2" DN15 130 95 65 45 4-14 3/4" DN20 145 105 75 55 4-14 1" DN25 150 115 85 65 4-14 1-1/4" DN32 165 135 100 78 4-18 1-1/2" DN40 200 145 110 85 4-18 2" DN50 220 160 125 100 4-18 2-1/2" DN65 250 180 145 120 4-18 3" DN80 285 195 160 135 8-18 4" DN100 305 215 180 155 8-18 5" DN125 345 245 210 185 8-18 6" DN150 385 280 240 210 8-23 8" DN200 485 335 295 265 12-23 Notes:The sizes of serial valve connecting flange can be designed according to customers' requirement.
