Design Features
◆Investment Casting Body
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:1.6 ~6.4MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium: Water,oil,gas Etc

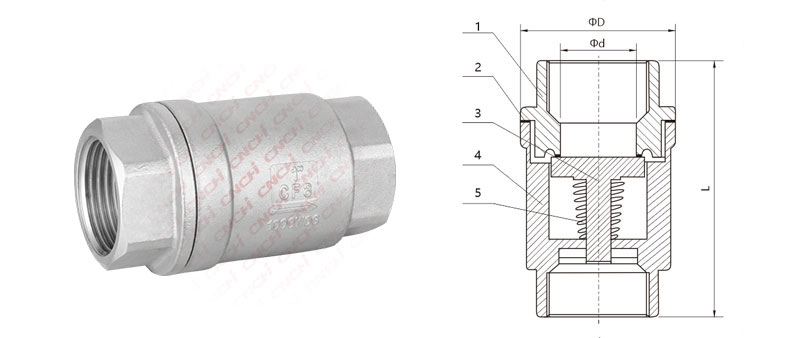

Main parts and materials
ITEM PART MAIN MATERIAL 1 Bonnet CF8 CF8M 2 Sealing ring PTFE RPTFE 3 Disc CF8 CF8M 4 Body CF8 CF8M 5 Spring 304 316 Main dimensions (mm)
SIZE Фd L ФD 1/2" DN15 15 60 36.5 3/4" DN20 20 70 43 1" DN25 25 85 51 1-1/4" DN32 32 95 60 1-1/2" DN40 40 105 72 2" DN50 50 120 84
