Design Features
◆Investment Casting Body
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:200PSI
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc

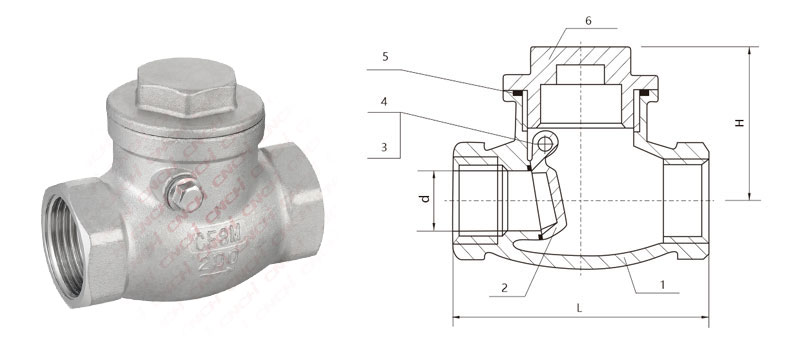

Main parts and materials
ITEM PART MAIN MATERIAL 1 Body CF8 CF8M 2 Disc CF8 CF8M 3 Plug 304 4 Sealing ring PTFE RPTFE 5 Sealing ring PTFE RPTFE 6 Bonnet CF8 CF8M Main dimensions (mm)
SIZE d L H 1/2" DN15 15 59 42 3/4" DN20 20 75 48 1" DN25 25 85 52 1-1/4" DN32 32 102 60 1-1/2" DN40 40 115 64 2" DN50 50 138 72 2-1/2" DN65 63 165 95
