Design Features
◆Investment Casting Body
◆Blow-out Proof Stem
◆Locking Device Handle Available
◆Working pressure:1.6MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc

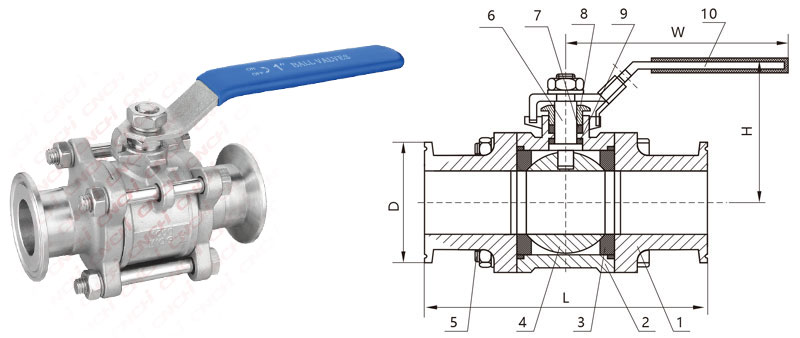

Main parts and materials
ITEM PART MAIN MATERIAL 1 Bonnet CF8 CF8M 2 Body CF8 CF8M 3 Valve seat PTFE RPTFE 4 Ball 304 316 5 Bolt A2-70 304 6 Stem 304 316 7 Packing PTFE RPTFE 8 Gland nut 304 9 Thrust washer 304 10 Handle 201 304 Main dimensions (mm)
SIZE D L H W 1/2" DN15 25.5 50.5 95 55 110 3/4" DN20 50.5 105 63 125 1" DN25 50.5 115 75 145 1-1/4" DN32 50.5 125 82 160 1-1/2" DN40 50.5 64 135 95 180 2" DN50 64 77.5 150 110 220 2-1/2" DN65 77.5 91 190 131 240 3" DN80 91 106 220 140 290 4" DN100 119 280 170 315
