Design Features
◆Forged Steel Body
◆Blow-out Proof Stem
◆Working pressure:1.6~6.4MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc
Main parts and materials
ITEM PART MAIN MATERIAL 1 Body A105 304 316 2 Ball 304 316 3 Stem 304 316 4 Valve seat PTFE RPTFE 5 Handle 201 304 Main dimensions(mm)

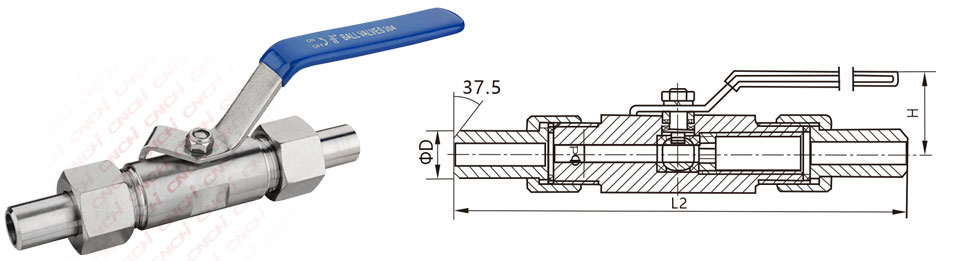

SIZE Φd L1 L2 W H ΦD M 1/4" DN6 5 80 130 105 55 14 20x1.5 3/8" DN10 8 85 135 110 58 18 24x1.5 1/2" DN15 10.5 85 156 122 60 22 30x2 3/4" DN20 13 90 174 132 67 27 36x2 1" DN25 17 100 188 132 70 32 42x2 1-1/4" DN32 22 120 216 152 82 40 52x2 1-1/2" DN40 25 135 235 162 87 48 60x3 2" DN50 32 140 255 162 100 60 72x3
