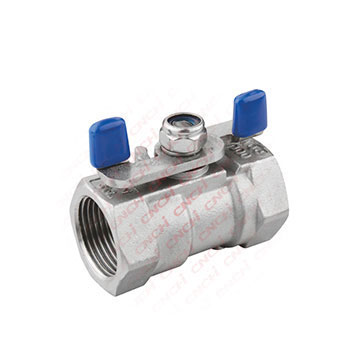

Design Features
◆Investment Casting Body
◆Blow-out Proof Stem
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:1.6~6.4Mpa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc
Main parts and materials
ITEM PART MAIN MATERIAL 1 Body WCB CF8 CF8M CF3M 2 Ball 304 316 316L 3 End Cap 304 316 316L 4 Valve Seat PTFE RPTFE 5 Stem 304 316 316L 6 Thrust Washer PTFE RPTFE 7 Stem Packing PTFE RPTFE 8 Gasket 304 9 Spring Washer 304 10 Nut 304 11 Handle 201 304 12 Handle Cover Plastic 13 Locking Device 201 304 Main dimensions(mm)
SIZE Φd L H W 1/4" DN6 5 40 28 72 3/8" DN10 7 45 30 80 1/2" DN15 9 56 35 95 3/4" DN20 12 58 45 98 1" DN25 15 70 50 110 1-1/4" DN32 20 78 55 130 1-1/2" DN40 25 85 60 142 2" DN50 32 100 68 146 2-1/2' DN65 38 110 92 180 3' DN80 49 135 115 220 4' DN100 65 190 134 230
