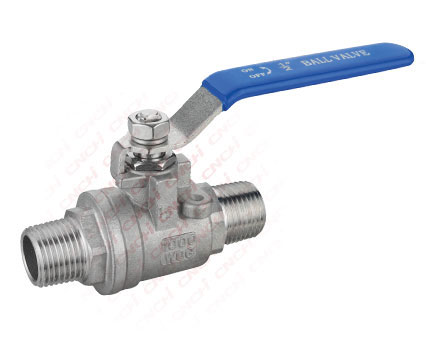

Design Features
◆Investment Casting Body
◆Blow-out Proof Stem
◆Full port design
◆Locking Device Handle Available
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:1.6~6.4MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc
Main parts and materials
ITEM PART MAIN MATERIAL 1 Body WCB CF8 CF8M CF3M 2 Valve seat PTFE RPTFE 3 Ball 304 316 316L 4 Sealing ring PTFE RPTFE 5 Bonnet WCB CF8 CF8M CF3M 6 Stem 304 316 316L 7 Thrust Washer PTFE RPTFE 8 Stem Packing PTFE RPTFE 9 Gland Nut 304 10 Handle 201 304 11 Spring Washer 304 12 Nut 304 13 Locking Device 201 304 14 Handle Cover Plastic Main dimensions(mm)
SIZE Φd L H W 1/4" DN6 10.5 55 50 95 3/8" DN10 12 55 50 95 1/2" DN15 15 62 54 105 3/4" DN20 20 72 62 118 1" DN25 25 84 70 128 1-1/4" DN32 32 98 83 145 1-1/2" DN40 38 105 93 162 2" DN50 49 120 104 175 2-1/2" DN65 65 155 130 220 3" DN80 78 178 140 240 4" DN100 98 220 175 315
