Design Features
◆Investment Casting Body
◆Blow-out Proof Stem
◆Full port design
◆Locking Device Handle Available
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:1.6~6.4MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc

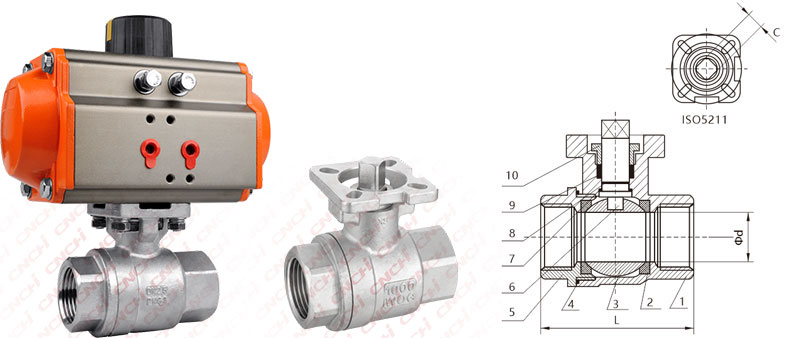

Main parts and materials
ITEM PART MAIN MATERIAL 1 Body WCB CF8 CF8M 2 Valve seat PTFE RPTFE 3 Ball 304 316 4 Sealing ring PTFE RPTFE 5 Bonnet WCB CF8 CF8M 6 Stem 304 316 7 Thrust Washer PTFE RPTFE 8 O-Ring VITON 9 Stem Packing PTFE RPTFE 10 Gland Nut 304 Main dimensions(mm)
SIZE Φd L C ISO5211 1/2" DN15 15 62 9 F03/F04 3/4" DN20 20 72 9 F03/F04 1" DN25 25 84 11 F04/F05 1-1/4" DN32 32 98 11 F04/F05 1-1/2" DN40 38 105 14 F05/F07 2" DN50 49 120 14 F05/F07 2-1/2" DN65 65 155 17 F07/F10 3" DN80 78 178 17 F07/F10 4" DN100 98 220 17 F07/F10
