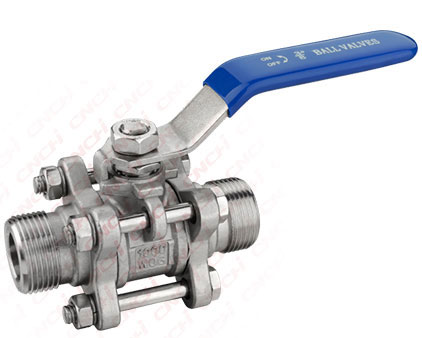

3PC Outside thread Ball Valve

  • 2017102434880101.jpg


    Design Features

    ◆Investment Casting Body

    ◆Blow-out Proof Stem

    ◆Full port design

    ◆Locking Device Handle Available

    ◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp

    ◆Working pressure:1.6~6.4MPa

    ◆Applicable temperature:-29°C~150°C(300°C)

    ◆Applicable Medium: Water,oil,gas Etc


    Main parts and materials

    ITEMPARTMAIN MATERIAL
    1BodyWCB  CF8  CF8M CF3M
    2Valve seatPTFE  RPTFE
    3Ball304  316 316L
    4BonnetWCB  CF8  CF8M CF3M
    5Spring Washer304
    6NutA2-70 304
    7BoltA2-70 304
    8Stem304  316 316L
    9Thrust WasherPTFE RPTFE
    10Stem PackingPTFE RPTFE
    11Gland Nut304
    12Handle201 304
    13Spring Washer304
    14Nut304
    15Locking Device201 304
    16Handle CoverPlastic



    Main dimensions(mm)

    SIZEΦdLHW
    1/4"DN610.5655295
    3/8"DN1012655295
    1/2"DN15157055100
    3/4"DN20208063115
    1"DN25259075125
    1-1/4"DN323211081145
    1-1/2"DN403812095160
    2"DN5049140110175
    2-1/2"DN6565183131220
    3"DN8078204140240
    4"DN10098240170315
