Two Pieces Ball Valve With High Mounting Pad

  • 14.jpg


    Design Features

    ◆Investment Casting Body

    ◆Blow-out Proof Stem

    ◆Full port design

    ◆Locking Device Handle Available

    ◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp

    ◆Working pressure:1.6~6.4MPa

    ◆Applicable temperature:-29°C~150°C(300°C)

    ◆Applicable Medium:Water,oil,gas Etc

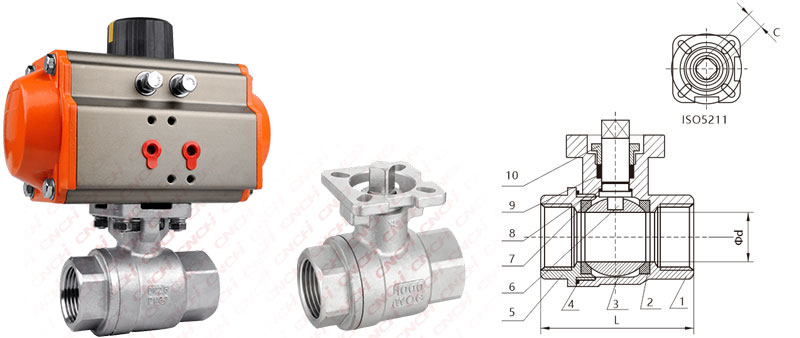

    Main parts and materials

    ITEMPARTMAIN MATERIAL
    1BodyWCB CF8 CF8M
    2Valve seatPTFE  RPTFE
    3Ball304  316
    4Sealing ringPTFE  RPTFE
    5BonnetWCB  CF8  CF8M
    6Stem304  316
    7Thrust WasherPTFE  RPTFE
    8O-Ring VITON
    9Stem PackingPTFE RPTFE
    10Gland Nut304


    Main dimensions

    SIZEΦdLCISO5211
    1/2"DN1515629F03/F04
    3/4"DN2020729F03/F04
    1"DN25258411F04/F05
    1-1/4"DN32329811F04/F05
    1-1/2"DN403810514F05/F07
    2"DN504912014F05/F07
    2-1/2"DN656515517F07/F10
     3" DN8078 178 17F07/F10
     4" DN10098 220 17F07/F10
