Design Features
◆Design standard: GB/T 12237,API608,JPI 7S-48
◆Flanged ends：GB/T 9113,JB/T 79,HG 20596,ANSI B16.5,JIS B2212-B2214
◆Test & inspection：JB/T9092,GB/T 13927,API598
◆Applicable medium:Water,oil,gas Ect
Main parts and materials

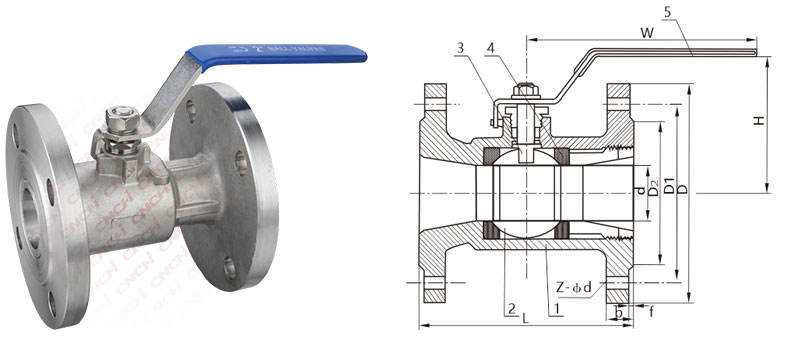

ITEM PART MAIN MATERIAL 1 Body WCB 304 316 2 Ball 304 316 3 Stem 304 316 4 Valve Seat PTFE RPTFE 5 Handle 201 304 Main dimensions(1.6MPa) (mm)
SIZE d L D D1 D2 H W Z-Фd 1/2″ 10.5 15 90 95 65 45 60 110 4-14 3/4" 13 20 105 105 75 55 72 120 4-14 1" 17 25 110 115 85 65 80 145 4-14 1-1/4″ 22 32 125 135 100 78 90 160 4-18 1-1/2″ 25 38 136 145 110 85 95 160 4-18 2" 32 49 155 160 125 100 105 180 4-18 2-1/2" 40 - 170 180 145 120 120 200 4-18 3" 50 - 190 195 160 135 130 240 8-18 4" 65 - 210 215 180 155 150 270 8-18 Notes:The sizes of serial valve connecting flange can be designed according to customers' requirement.
