Design Features
◆Investment Casting Body
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:800PSI
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium: Water,oil Etc

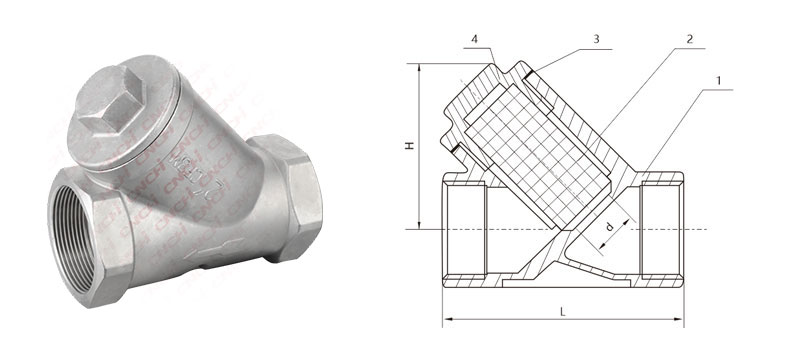

Main parts and materials
ITEM PART MAIN MATERIAL 1 Body CF8 CF8M 2 Filter Screen 304 316 3 Sealing ring PTFE RPTFE 4 Bonnet CF8 CF8M Main dimensions (mm)
SIZE d L H 1/2" DN15 15 64 45 3/4" DN20 20 80 57 1" DN25 25 90 73 1-1/4" DN32 32 105 78 1-1/2" DN40 40 118 84 2" DN50 50 138 98
