3 Way Ball Valve

  • 19.jpg



    Design Features

    ◆Investment Casting Body

    ◆Blow-out Proof Stem

    ◆Reduce Port Design

    ◆Locking Device Handle Available

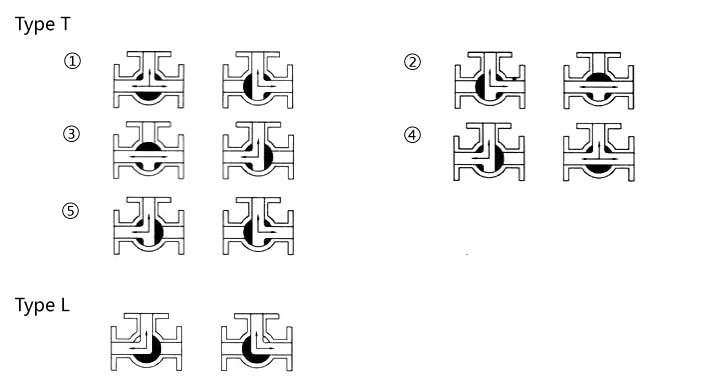

    ◆L Port or T Port Ball Design

    ◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp

    ◆Working pressure:1.6~6.4Mpa

    ◆Applicable temperature:-29°C~150°C(300°C)

    ◆Applicable Medium: Water,oil,gas Etc

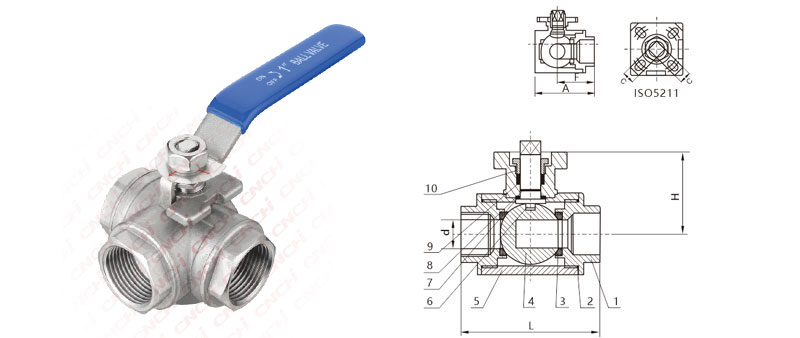

    Main parts and materials

    ITEMPARTMAIN MATERIAL
    1BonnetWCB CF8 CF8M
    2Sealing ringPTFE RPTFE
    3Valve seatPTFE RPTFE
    4Ball304 316
    5BodyWCB CF8 CF8M
    6StemPTFE RPTFE
    7Thrust WasherPTFE RPTFE
    8O-ringVITON
    9Stem PackingPTFE RPTFE
    10Gland Nut304


    Main dimensions (mm)

    SIZEΦdLHWCISO5211
    1/2"DN151270381159F03/F04
    3/4"DN201580411159F03/F04
    1"DN2518874714511F04/F05
    1-1/4"DN32251105716011F04/F05
    1-1/2"DN40321316918014F05/F07
    2"DN50381437520014F05/F07
    2-1/2"DN654919524017F07/F10
