Design Features
◆Investment Casting Body
◆Blow-out Proof Stem
◆Full port design
◆Locking Device Handle Available
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:1.6~6.4MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium: Water,oil,gas Etc

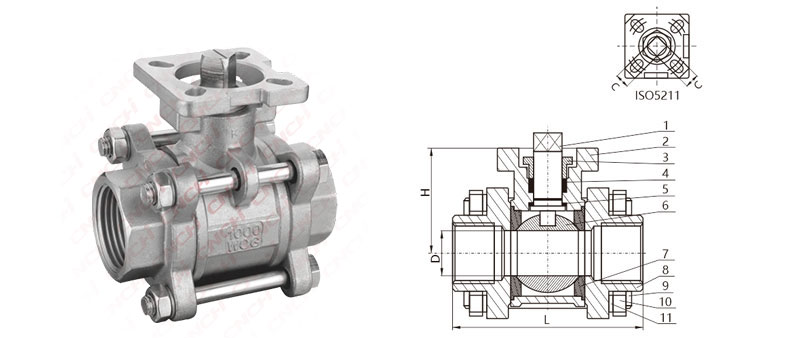

Main parts and materials
ITEM PART MAIN MATERIAL 1 Stem 304 316 2 Body WCB CF8 CF8M 3 Gland Nut 304 316 4 Stem Packing PTFE RPTFE 5 Thrust Washer PTFE RPTFE 6 Ball 304 316 7 Valve seat PTFE RPTFE 8 Bonnet WCB CF8 CF8M 9 Bolt A2-70 304 10 Nut A2-70 304 11 Spring Washer 304 Main dimensions(mm)
SIZE Φd L H C ISO5211 1/2" DN15 15 70 39 9 F03/F04 3/4" DN20 20 80 47 9 F03/F04 1" DN25 25 90 56 11 F04/F05 1-1/4" DN32 32 110 62 11 F04/F05 1-1/2" DN40 38 120 74 14 F05/F07 2" DN50 49 140 82 14 F05/F07 2-1/2" DN65 65 180 17 F07/F10 3" DN80 78 200 17 F07/F10 4" DN100 98 240 17 F07/F10
