Hexagon Ball Valve

  • 25.jpg


    Design Features

    ◆Forged Steel Body

    ◆Blow-out Proof Stem

    ◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp

    ◆Working pressure:2000PSI

    ◆Applicable temperature:-29°C~150°C(300°C)

    ◆Applicable Medium:Water,oil,gas Etc

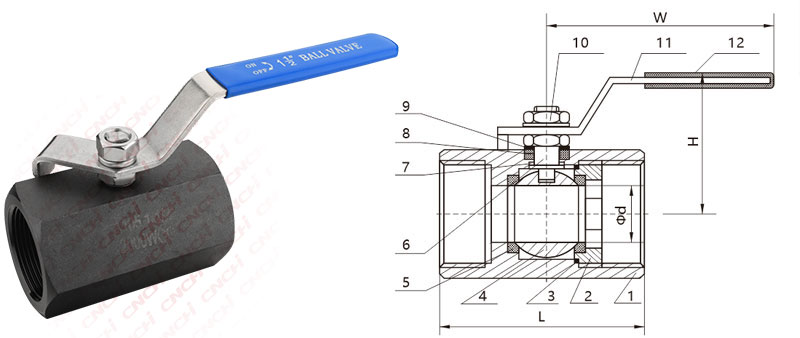

    Main parts and materials

    ITEMPARTMAIN MATERIAL
    1BodyA105 304 316
    2End CapA105 304 316
    3Sealing ringPTFE RPTFE
    4Ball304 316
    5Valve seatPTFE RPTFE
    6Stem304 316
    7Thrust WasherPTFE RPTFE
    8Stem PackingPTFE RPTFE
    9Gasket304
    10Nut304
    11Handle201 304
    12Handle CoverPlastic



    Main dimensions(mm)

    SIZEΦdL HW
    1/4"DN65424285
    3/8"DN107464888
    1/2"DN1596252110
    3/4"DN20127058120
    1"DN25158665140
    1-1/4"DN32209375160
    1-1/2"DN402510180165
    2"DN503211590190
