Design Features
◆Investment Casting Body
◆Thread standard:BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:2.5MPa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc

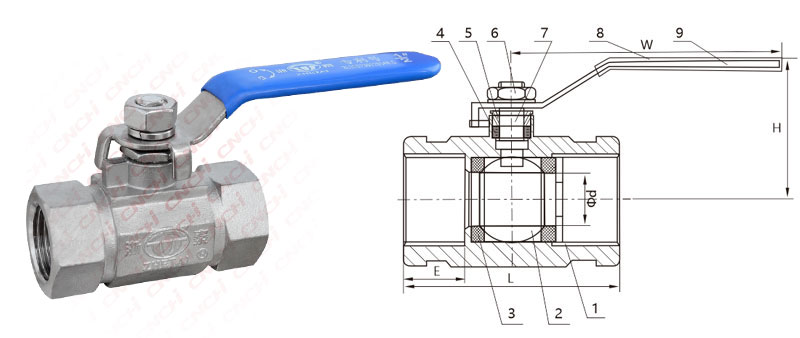

Main parts and materials
ITEM PART MAIN MATERIAL 1 Body CF8 CF8M 2 Ball 304 316 3 Valve seat PTFE RPTFE 4 Packing PTFE RPTFE 5 Gland nut 304 6 Nut 304 7 Stem 304 316 8 Handle cover PLASTIC 9 Handle 201 304 Main dimensions(mm)
SIZE Φd L E H W 1/2" DN15 10.5 60 14 43 88 3/4" DN20 13 68 15 48 94 1" DN25 17 73 15 52 110 1-1/4" DN32 22 89 18 65 135 1-1/2" DN40 25 96 19 68 140 2" DN50 32 110 20 80 148
