Design Features
◆Forged Steel Body
◆Blow-out Proof Stem
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:1.6~6.4Mpa
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc
Main parts and materials

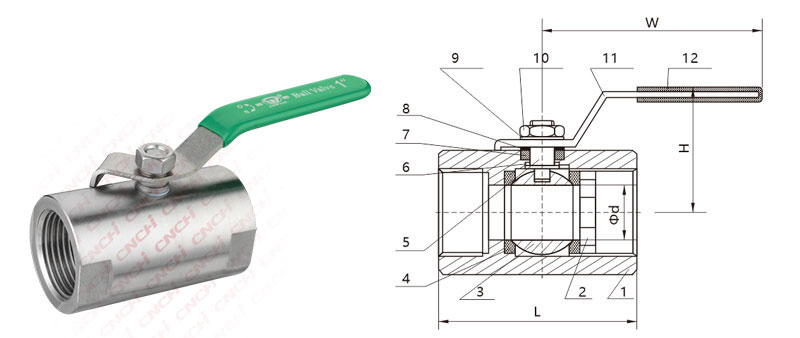

ITEM PART MAIN MATERIAL 1 Body A105 304 316 2 End Cap A105 304 316 3 Ball 304 316 4 Valve seat PTFE RPTFE 5 Stem 304 316 6 Thrust Washer PTFE RPTFE 7 Stem Packing PTFE RPTFE 8 Gasket 304 9 Spring Washer 304 10 Nut 304 11 Handle 201 304 12 Handle Cover Plastic Main dimensions(mm)
SIZE d Φd L H W 1/4" DN6 5 20 48 30 85 3/8" DN10 8 27 58 37 88 1/2" DN15 10.5 31.5 60 38 90 3/4" DN20 13 37 66 45 92 1" DN25 17 44 72 47 100 1-1/4" DN32 22 53 89 60 128 1-1/2" DN40 25 60 96 63 128 2" DN50 32 72 108 74 140 2-1/2" DN65 40 88 130 90 180 3" DN80 50 103 148 100 200 4" DN100 65 135 188 115 230
